Intelligent Tilt Monitoring System with Sensors

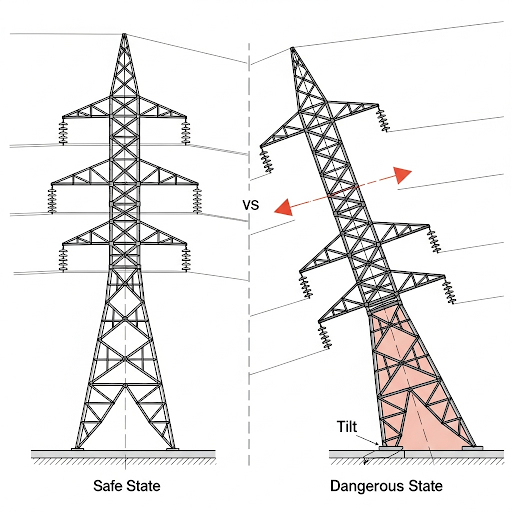

1. The core significance of transmission line tower tilt monitoring

As the "skeleton" of power transmission, the stability of transmission line towers is directly related to the safe operation of the power system. Due to long-term exposure to complex outdoor environments, towers face multiple threats:

Natural factors: strong winds, heavy rains, earthquakes, ice and snow accumulation, etc. may cause the tower to be unbalanced, causing tilt or collapse;

Geological and human factors: geological disasters such as foundation settlement and landslides, as well as surrounding construction disturbances, will destroy the stability of the tower foundation.

If the tower tilt is not discovered in time, it may cause:

Power outages, affecting residents' lives and industrial production;

Tower collapse causes damage to surrounding facilities and casualties;

Repair costs soar, causing huge economic losses.

Therefore, tilt monitoring system，real-time monitoring of tilt status and early warning of hidden dangers are key links to ensure the resilience of the power system.

2. Tilt sensor: technical principles and core features

The tilt sensor is the core equipment for realizing tower tilt monitoring, and its technical characteristics directly determine the monitoring effect.

1. Working principle

Based on the principle of inertia, the tilt angle relative to the horizontal or vertical plane is measured by detecting the posture change of the object in the gravity field. The current mainstream types include:

Solid pendulum, liquid pendulum, gas pendulum;

MEMS (micro-electromechanical system) technology sensor: Due to its small size and high precision, it has become the first choice for monitoring transmission line towers. Its core is to sense small angle changes through micro-mechanical structures.

2. Core Features

2.1.High-precision Measurement：Measurement accuracy can reach above 0.01°, capable of capturing minute tilts of the tower (such as slow deformation caused by foundation settlement), providing reliable data for safety assessment.

2.2.Real-time and Continuous：Continuously collects angle data and transmits it in real time, ensuring staff can grasp the tower's dynamics immediately (such as instantaneous tilt changes during strong winds).

2.3.Strong Anti-interference Ability：Adapts to complex outdoor electromagnetic environments (such as electromagnetic field interference from transmission lines), ensuring data stability.

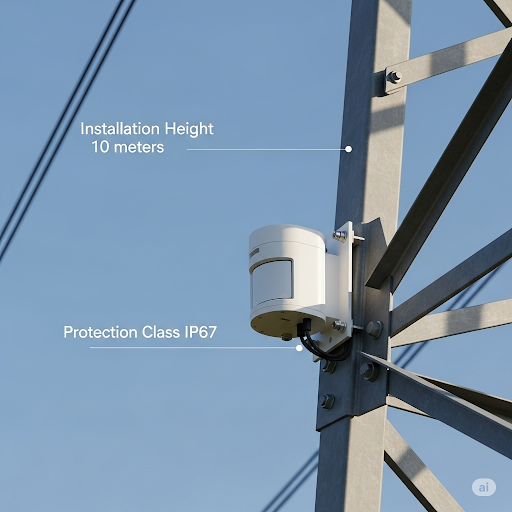

2.4.Convenience：Small in size (like a matchbox), can be installed at key parts such as the top and middle of the tower, installation requires no complex tools, reducing deployment costs.

2.5.Data Transmission & Processing：Supports transmission methods such as RS485/RS232 and LoRa. After data is connected to the monitoring system, storage, analysis, and visualization can be achieved.

3.Practical application of tilt sensors in tower monitoring

By installing tilt sensors at key parts of the tower, a "monitoring-warning-analysis-decision-making" closed-loop system is constructed. The core applications include:

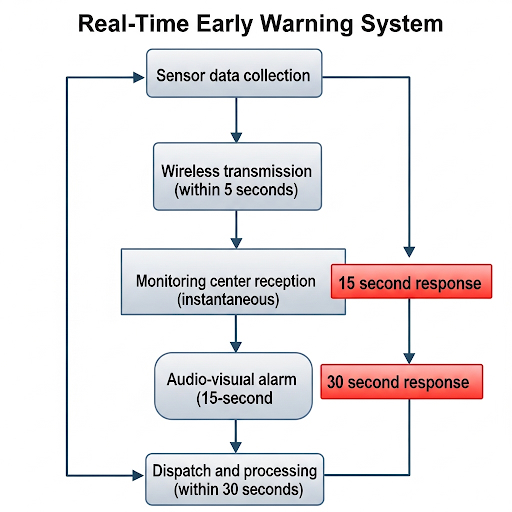

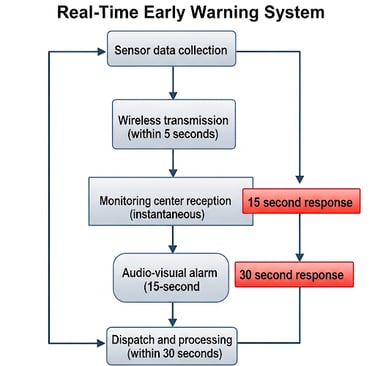

1. Real-time monitoring and dynamic warning

Monitoring objects: The tilt angle and tilt rate of the tower in the horizontal (X axis) and vertical (Y axis) directions (such as 0.1° per minute).

Warning mechanism: Preset safety thresholds (such as tilt angles > 1°), and immediately send warning signals to the monitoring center through wireless communication when exceeding the standard.

Application scenarios:

Windy weather: strong winds cause the tower to tilt instantly. After the warning, the power can be temporarily cut off and reinforcement can be arranged;

Snowy weather: excessive snow accumulation causes tilting, triggering de-icing operations (such as drone de-icing).

2. Data storage and trend analysis

Data value: Long-term storage of tilt data can reflect the law of stability changes, for example:

Seasonal trend: thawing of frozen soil in winter causes foundation settlement, and the tilt angle fluctuates periodically;

Aging trend: loosening of tower bolts causes the tilt angle to increase year by year.

Decision support: By analyzing historical data, formulate targeted maintenance plans (such as strengthening the foundation before the rainy season).

3. Multi-device collaborative monitoring network

The tilt sensor needs to be linked with other equipment to form a comprehensive system:

Cooperate with the wind speed and direction meter to analyze the impact of wind load on tilt;

Link with video monitoring, automatically shoot the tower status when warning, and assist in determining the cause of tilt;

Combined with the GIS system, the data is superimposed on the geographic information map to facilitate large-scale power grid management.

4.Future Development Trends

With the advancement of smart grid construction, the application of inclination sensors will be upgraded to high efficiency and intelligence:

Low power consumption and long battery life: solar power supply + low power chip, suitable for long-term monitoring in remote areas;

AI-assisted analysis: machine learning identifies abnormal patterns and improves the accuracy of early warning;

IoT integration: Incorporate the power IoT to achieve full-link interoperability of "sensor-edge terminal-cloud platform".

Summary

The inclination sensor builds the "first line of defense" for the transmission line tower through high-precision and real-time monitoring.tilt monitoring system Its integration with multiple technologies can not only avoid the risk of collapse, but also support full life cycle management, which is a key means to ensure the safety of the power system. In the future, intelligent upgrades will make this system more reliable and safeguard energy security.
